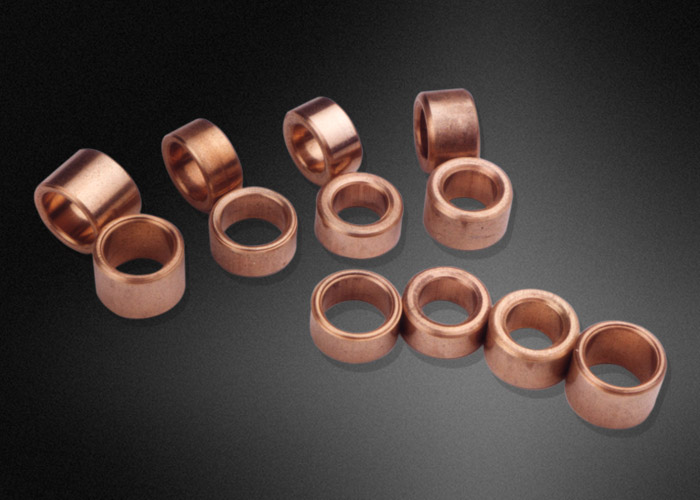

Wrapped Bushes > SBOB Sintered Bushing With Oil
Products No.: SBOB
Products type.: Sintered Bushing With Oil
Specification:
- SBOB bushing
- Approx. composition: Cu89.5Sn9.3C1.2 or Cu85Sn6Zn6Pb3
- Density: 6.0 g/cm3
- Oil content volume: 25 %
- Tensile strength: 60 N/mm2
- Elongation: 1 %
- Hardness: 15 HV
- SBOB Fe bushing
- Approx. composition: Fe 100
- Density: 5.5 g/cm3
- Oil content volume: 25 %
- Tensile strength: 60 N/mm2
- Elongation: 1 %
- Hardness: 20 HV
This is a kind bushing which is made by bronze or iron powder, mold pressed under high pressure and then sintered under high temperature,and oil is soaked into the homogeneously spreaded tiny pores of the metal under vacuum. SBOB bushing is widely used for domestic electric equipments, electric tools, woven machines, chemical engineering machines, automobiles industry, etc.
