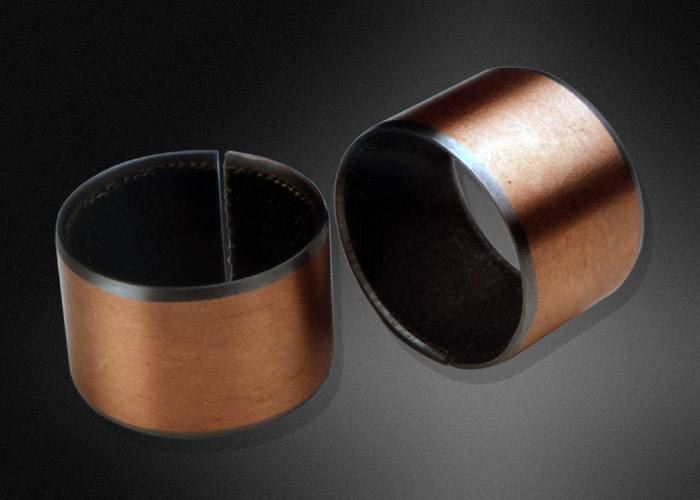

Wrapped Bushes > SBFG Steel Fibre Glass Bushing
Products No.: SBFG
Products type.: Steel Fibre Glass Bushing<
Mechanical data:
- Max. static load: 220 N/mm2
- Max. dynamic load: 150 N/mm2
- Min. friction coefficient: 0.03
- Max. continous PV-value: 130 N/mm 2 x m/min.
- Max. intermittent PV-value : 310 N/mm 2 x m/min.
- Max. speed (70 N/mm 2 ) 10.8 m/min.
- Max. speed (0.7 N/mm 2 ) 180 m/min.
- Surface roughness: 2 µm
- Sliding surface, thickness: 0.4 mm
- Temperature range: -200 ° C t.o.m. +250 ° C
SBFG is a selflubricating, fibre-reenforced PTFE-layer which is applied in a bushing, made of regular low carbon. As an alternative (e.g. for soft or sensitive shafts/ houses), can also be applied to a body of bronze
SBFG bushing can be produced as plain bushing, flangebushing, washer or sheet.
Areas of use
- SBFG is a bushing made for really heavy loads (also alternating load pressure) w. slow movements.
- SBFG is vibrant-resistant and insensitive to edge-pressure.
- SBFG is to be considered in those applications where Your normal PTFE, wrapped bushings don´t last or are worn out too quickly. Static friction and dynamic friction are almost identical.
- The sliding surface itself consists of a specially produced glassfibre-weave, woven together with PTFE-weave through a unique method. The weave is then seamed together with the steel/bronze-body, enabling the bushing to carry enormous loads without any of the layers getting separated. Through its unique PTFE/fibre-layer, SBFG is also able to handle corrosive environments (most chemicals etc.).
- SBFG can also be produced with a body of stainless-, acid-resistant steel or with bronze. SBFG is an excellent, priceworthy, selflubricating solution for applications exposed to heavy pressure and abrasion under low speed or oscillating movements
Material description
- 3-layers
- Fibre-reenforced PTFE special layer (selflubricating)
- Sintered bronze, middle layer
- Steel- or Bronze-body (anti-corrosive)
