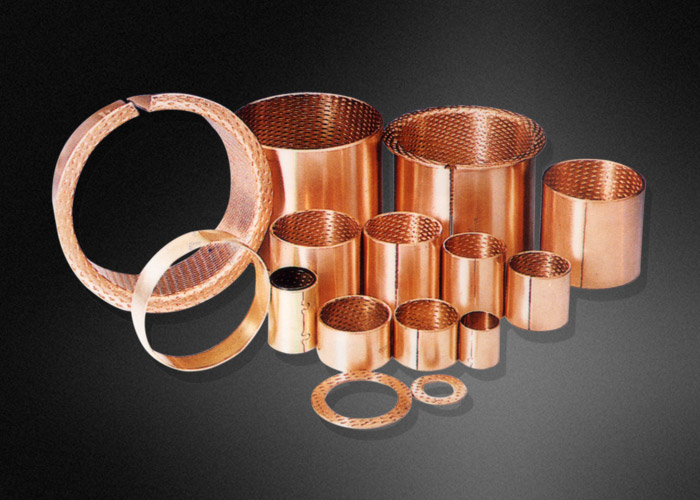

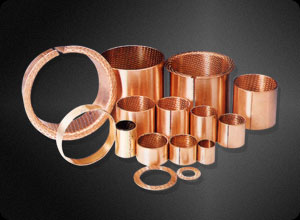

Wrapped Bushes > SB090 (FB090) Bronze Bushes
Products No.: SB090 (FB090)
Products type.: Bronze Bushes
Specification:
- LOAD CAPACITY: 150N/mm2
- TEMPERATURE LIMIT: -100℃~ + 200℃
- SPEED LIMIT: 2.5m/s
- CHEMICAL COMPO-SITIONS: CuSn 6.5Po.1
- BRINNAL HARDNESS: HB90 ~ 120
This is a kind of bushes wrapped by bronze strip. The bronze is of particular formulation with high specific gravity and on its surface may be in corporated with spherical or diamond shaped indentations or oil grooves as required by customers.
FB090 is of high load capacity and long life. In place of traditional bronze bush, it is more cheap and more compact.
This type of bush is widely applied in hoisting machines and other construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.
It can be fabricated into bushes, half bearings, flanged bushes, thrust washers, spherical bearings and so on.
